How to Make an Upholstered Cornice – Part II

| |

How to make an upholstered cornice via Worthing Court blog




Welcome to the second and final part of how to make an upholstered cornice.


If you missed Part I, you can view it here.




At the end of Part I we had completed the cornice box.
How to make an upholstered cornice via Worthing Court blog

Next steps!



Cover the cornice with batting:

I recommend using batting that is 3/4″ to 1″ thick.  It may look too poufy to you, but it will be mashed down a little once the fabric is applied.




Cut a piece of batting that is several inches wider and taller than the overall size of the cornice face and sides.  I don’t recommend piecing several pieces of batting together – use one continuous piece.

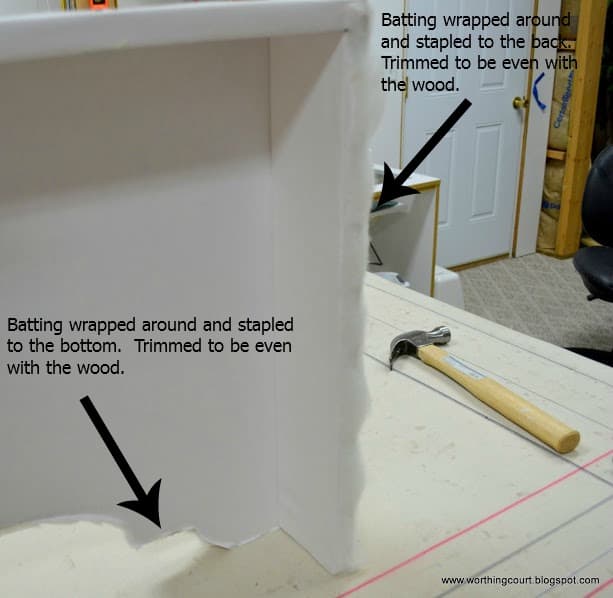

Lay the batting down over the face of the cornice.  Wrap the batting around the sides and bottom and attach with staples.  Pull the batting taut, but not too taut.  Once the batting has been attached, trim it so that it is even with the wood.
How to make an upholstered cornice via Worthing Court blog



How to make an upholstered cornice via Worthing Court blog

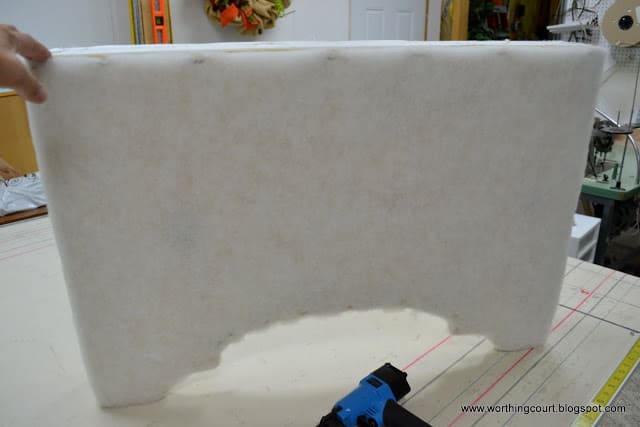

Once the cornice box has been completely covered and the batting trimmed, it should look like this.  Unless your fabric is very thin, you won’t see the dimples made by the staples along the top once the fabric has been applied.
How to make an upholstered cornice via Worthing Court blog



Cover the cornice with fabric:

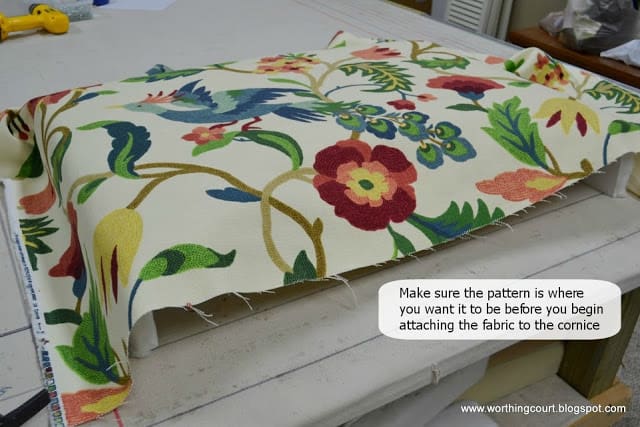

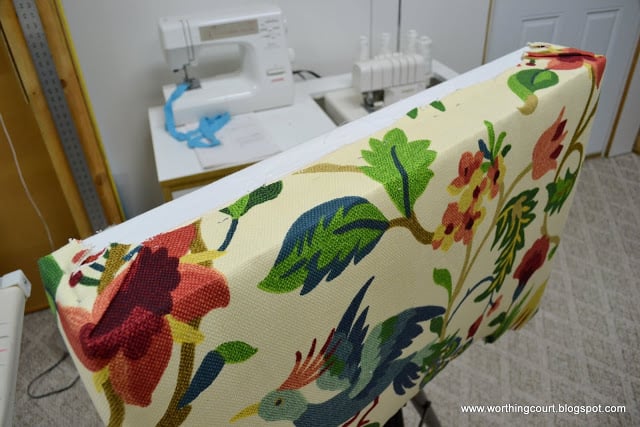

Using the same method as with the batting, lay your decorative fabric over the batting covered cornice.  If your fabric has a pattern on it, I recommend positioning the fabric so that the designs fall where you want them to.

How to make an upholstered cornice via Worthing Court blog

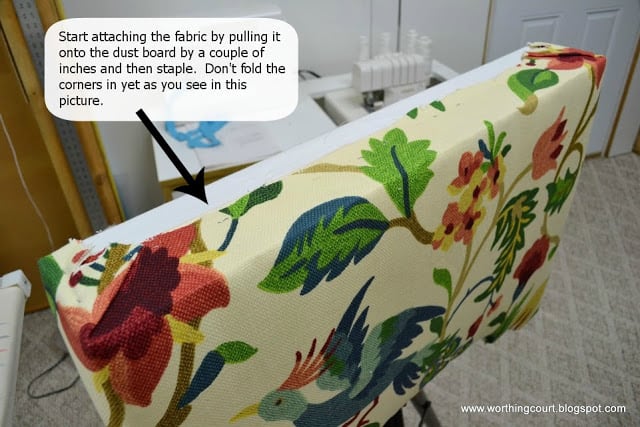

I typically start attaching the fabric on the dust board at the top of the cornice, especially if the pattern in the fabric is something that must be kept straight.  This picture doesn’t go with this step, but it gives you a good idea of where I start to attach the fabric.  Don’t fold the corners in yet like you see in this picture.


How to make an upholstered cornice via Worthing Court blog

Wrap it around the sides and bottom and attach with staples.  I typically attach a couple of staples to the bottom and then to each side, alternating back and forth –  constantly looking at the face side to make sure the fabric is being pulled correctly.

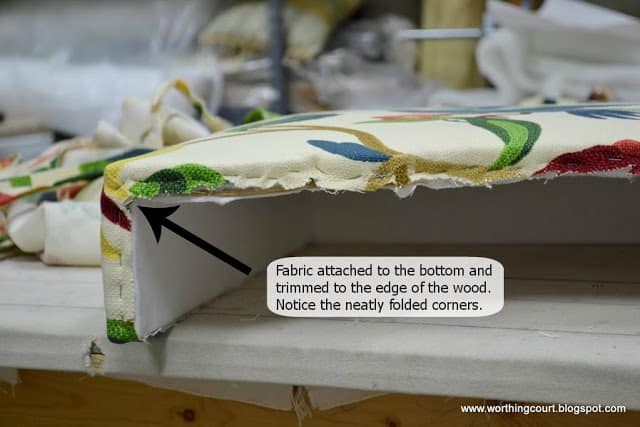

As with the batting, keep your fabric pulled taut, but not so taut that it distorts the pattern or leaves places where the fabric looks pulled.  And just like with the batting, trim the fabric to the be even with the wood.

How to make an upholstered cornice via Worthing Court blog

Now is the time to go back and fold those corners in neatly at the top.

How to make an upholstered cornice via Worthing Court blog

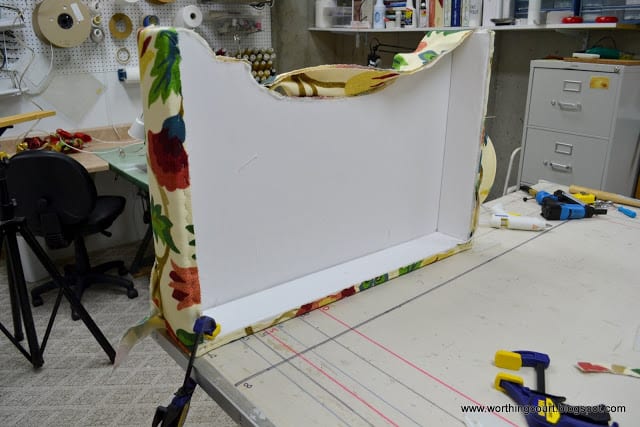

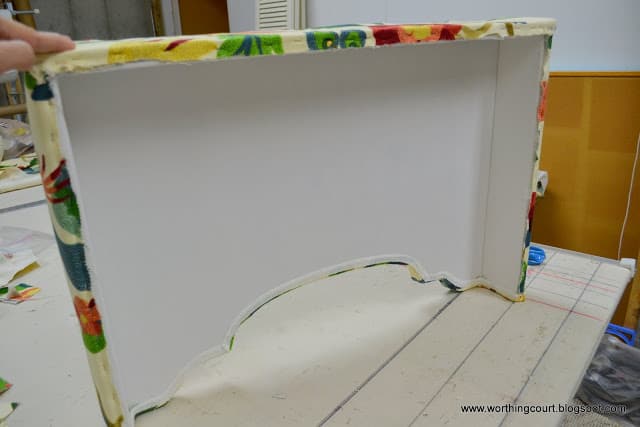

Here’s what the back side of your cornice should look like after the fabric has been attached and trimmed.

How to make an upholstered cornice via Worthing Court blog



Add some definition:
I highly recommend adding covered cording or decorative contrast cording to the top and bottom of your cornice.  It gives it definition and makes it look polished and professional.

I use hot glue to attach the cording.  I think it’s better than using staples because it provides an even sticky surface where as with staples you would have gaps between them.  When covering your cording, leave a lip that is 4″ long or more to give yourself plenty of fabric to hold onto while attaching it to the cornice.  Pull it taut as you go.



It really doesn’t matter if you choose to add the cording to the bottom or the top first.

On the bottom of the cornice, the lip of the cording is what will hide all of the staples that are holding the fabric that you attached.

Applying cording to the bottom is a two step process for me.  First, run a bead of hot glue along the edge of wood where the staples are.  Only go a few inches at a time.  Glue the cording in place, keeping a check on the face side as you go to make sure that you’re keeping the cording lined up with the edge properly.  You want the cording itself to lie on the front of the cornice, not running along the bottom of the wood.

How to make an upholstered cornice via Worthing Court blog

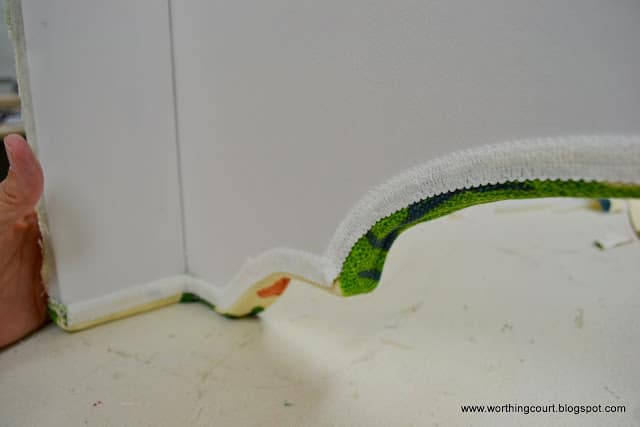

As you wrap the lip of the cording around the back, you may need to cut into your fabric to allow it expand around any curves in your design.  Just be careful not to cut too close to the stitching on the covered cording!   Ask me how I know.   :-/

How to make an upholstered cornice via Worthing Court blog

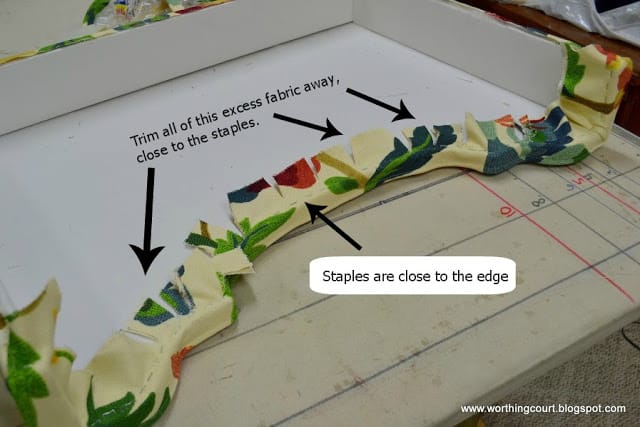

Next, staple the lip of the cording close to the edge of the wood and trim away the excess fabric.


How to make an upholstered cornice via Worthing Court blog

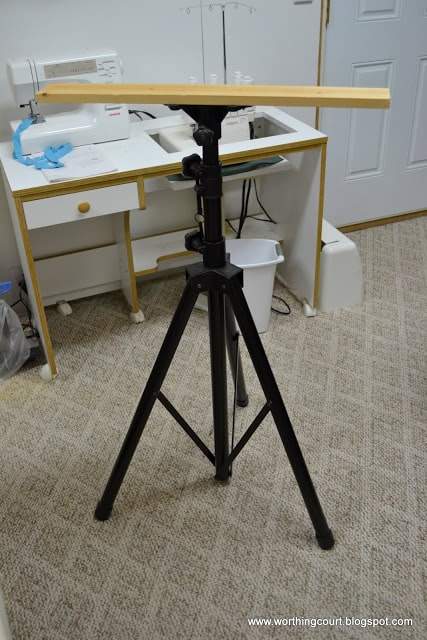

When applying the cording to the top, I clamp the cornice to a very inexpensive speaker stand that I’ve attached a piece of plywood to.  The stand is adjustable and makes it easy for working on the top of the cornice.  You certainly don’t have to have a stand, but you’ll need a good place to either lay or stand your cornice while attaching the cording.

How to make an upholstered cornice via Worthing Court blog

Going a few inches at a time, apply the glue along the dust cap, keeping a check on the face side to make sure that the cording is even with the top.  Just as with the bottom, you want the cording to lie on the face of the cornice, not along the top of the dust board.  Pull it taut as you go.

How to make an upholstered cornice via Worthing Court blog

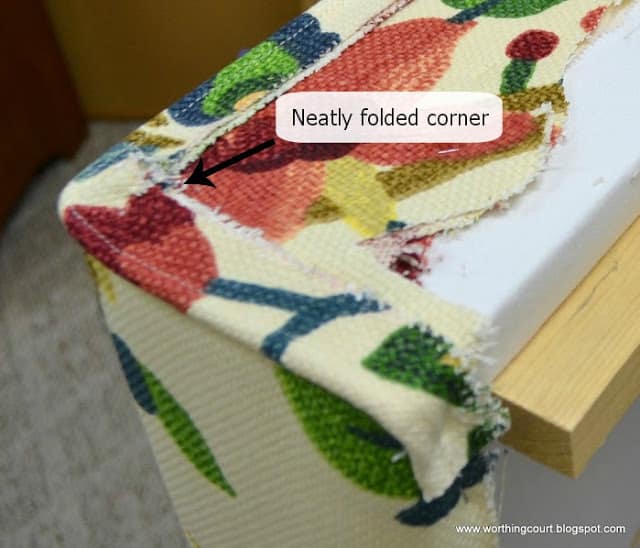

Neatly fold the corners.  If you choose, you can cut away excess fabric in the corners to cut back on bumps caused by extra bulk fabric.  Sometimes I do, sometimes I don’t.

How to make an upholstered cornice via Worthing Court blog


Now to deal with where the cording ends.  This applies to the cording that you applied to both the bottom and the top of the cornice.

How to make an upholstered cornice via Worthing Court blog

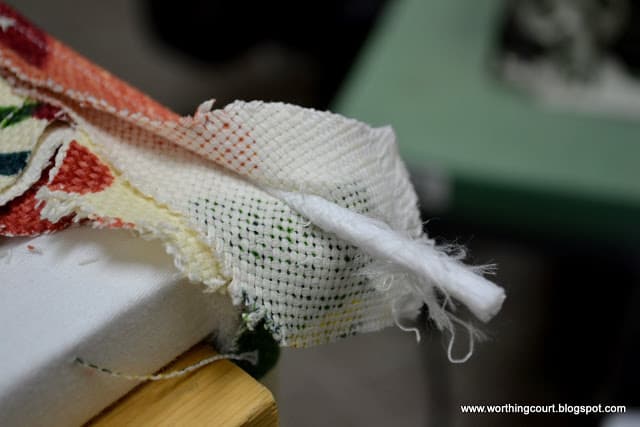

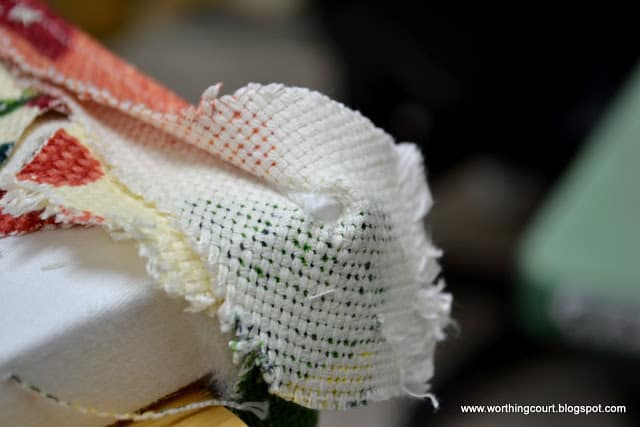

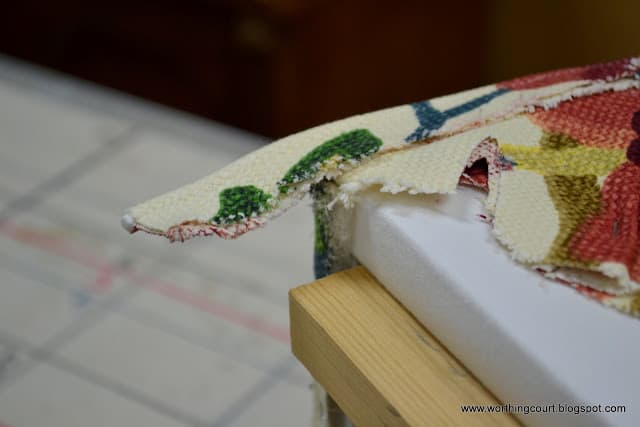

Open the covered cording up just enough to expose the cording itself.

How to make an upholstered cornice via Worthing Court blog

Cut the cording even with the wood in the back of the cornice box.

How to make an upholstered cornice via Worthing Court blog

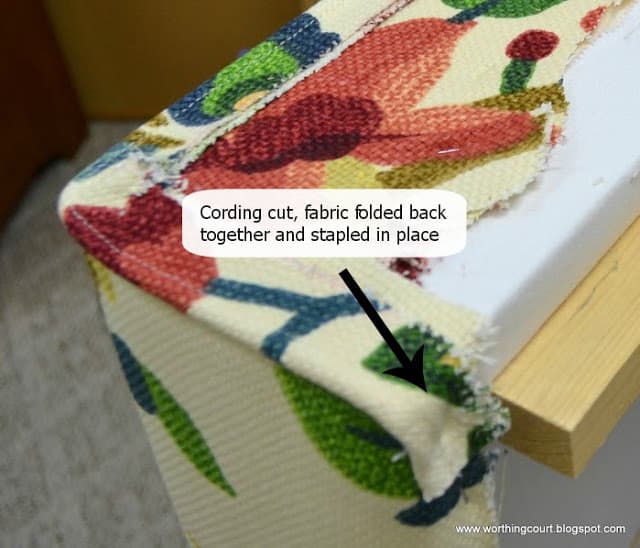

Fold the fabric back together, lay it down the back about an inch and staple in place.

How to make an upholstered cornice via Worthing Court blog



Add fabric to the dust cap:
This is another step that will give your cornice a polished and professional appearance.  It’s a step that you really can’t skip if there’s any possibility that your cornice will be seen from above.

Cut a strip of fabric that is wide enough to cover the wood of the dust cap and long enough to wrap around both ends – with several inches extra in each direction.  Unless I’ve pattern matched the cording to the fabric on the face, I don’t pattern match here because the design will be broken up by the cording, but you certainly can if you want to.

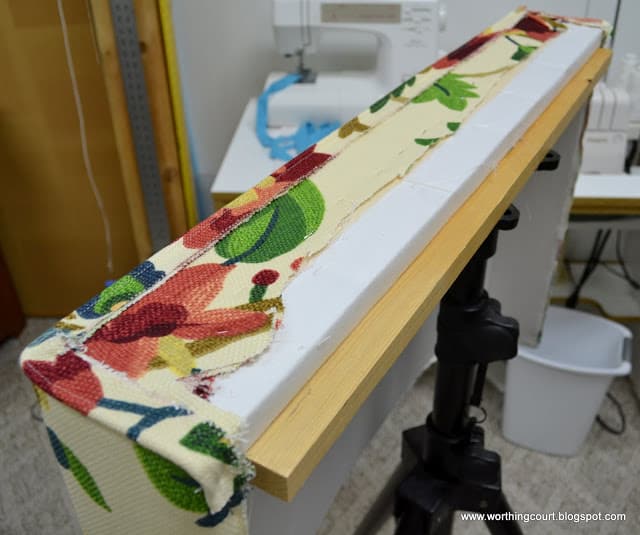

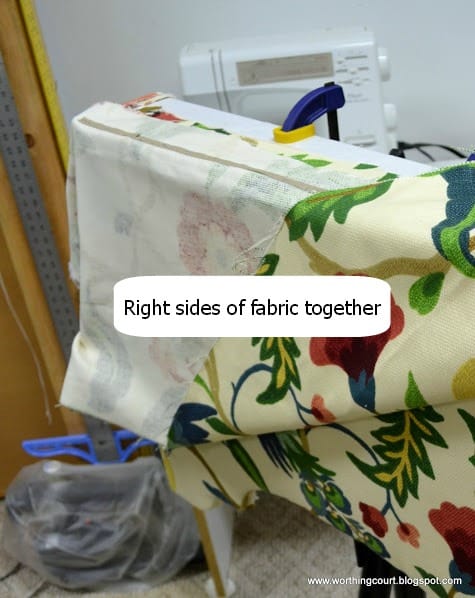

Laying the right sides together, staple the strip of fabric along the front of the cornice.  I’ll explain the strip of cardboard that you see later.

How to make an upholstered cornice via Worthing Court blog

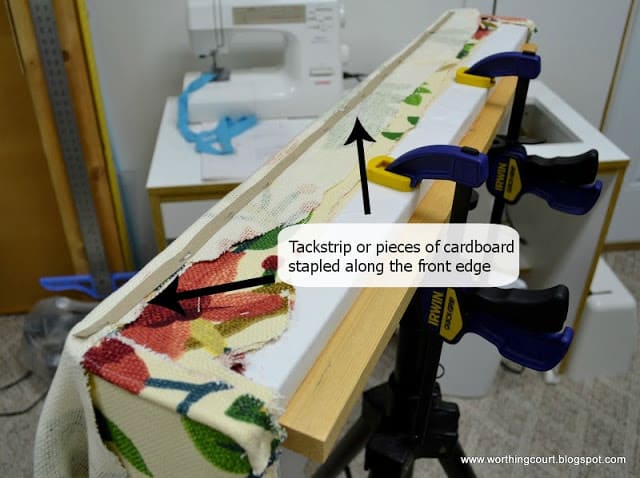

The fabric that you just stapled on will be flipped back over to cover up the wood of the dust cap.  To get a sharp edge along the front, I apply some tackstrip.  If you don’t have any of this product, you can either cut some pieces of cardboard or else skip this step.

How to make an upholstered cornice via Worthing Court blog

Fold the fabric back over toward the back and staple it to the back side of the cornice.  Tuck the fabric in neatly at the sides.  Sorry, no pic of this step, but you can see how it looks in the photo below.

Almost done!

Finish the raw edge at the bottom:

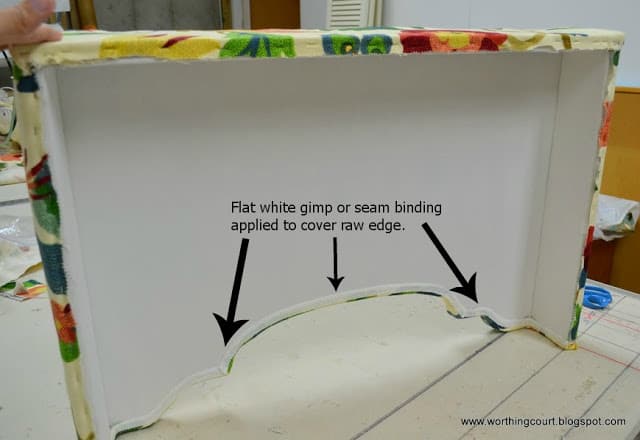

When you stapled the cording to the bottom of the cornice, you were left with a raw edge that you need to cover.  This edge can be easily seen if someone looks under your cornice to see the back, so I always add white flat gimp to cover that edge up.  You don’t have to use gimp – seam binding would also work well.

How to make an upholstered cornice via Worthing Court blog

Following along the raw edge, simply hot glue the gimp/seam binding in place.

How to make an upholstered cornice via Worthing Court blog

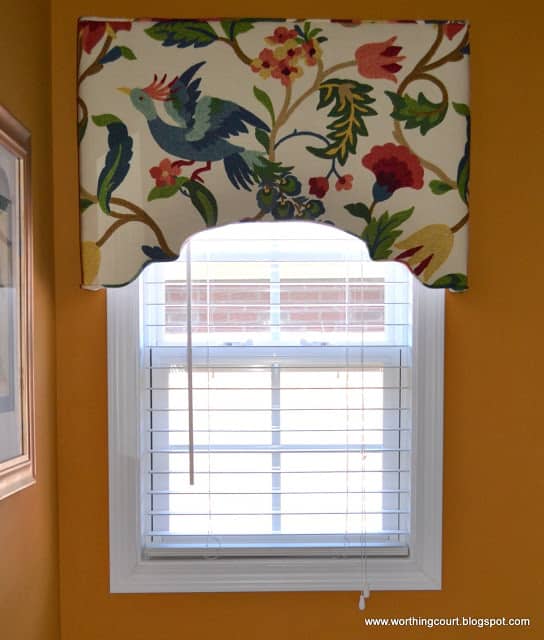

And ta-da!  Pat yourself on the back because you are finished!

How to make an upholstered cornice via Worthing Court blog


Beautiful much?  Yep!

FABRIC USED:  Richloom Lucy Eden
